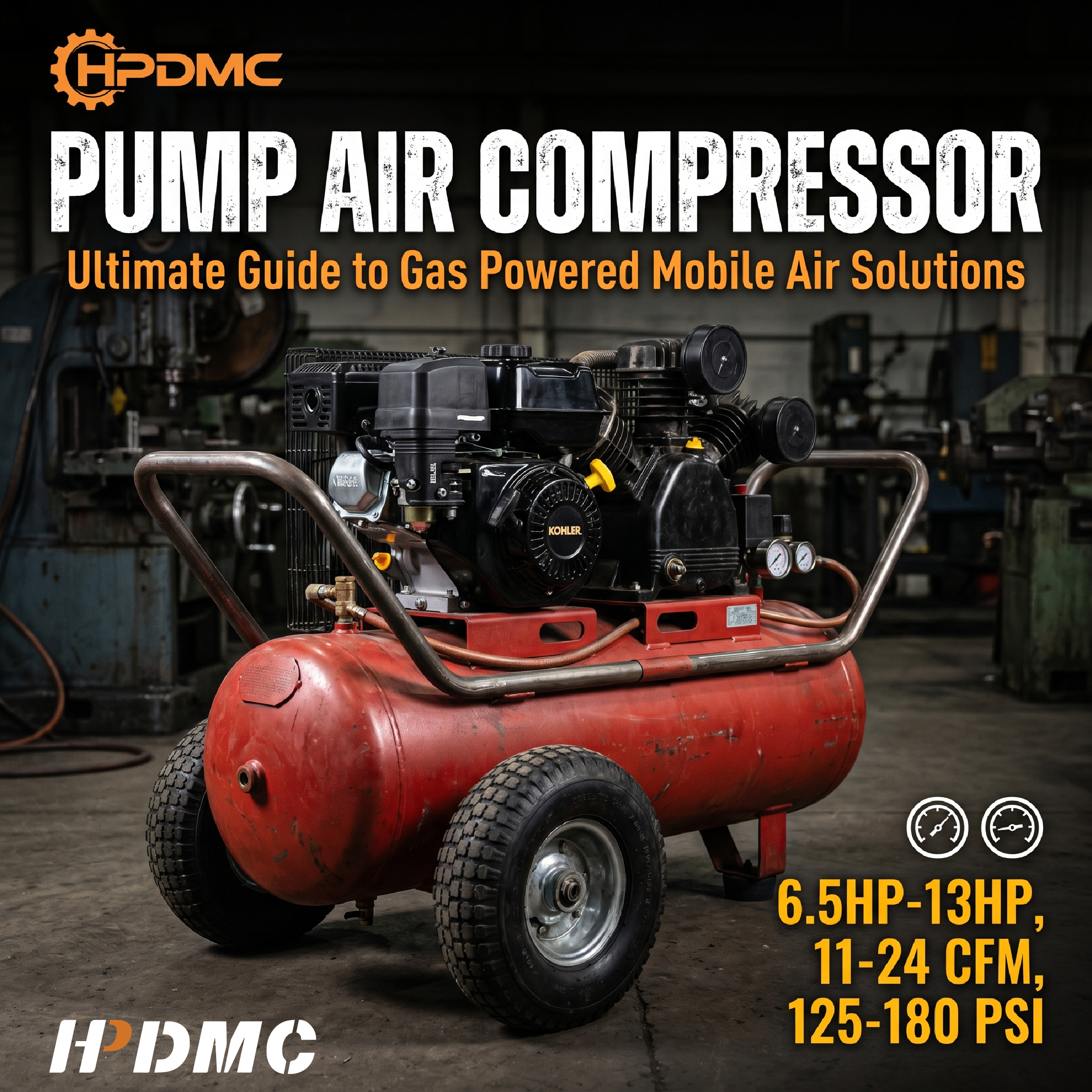

Pump Air Compressor Ultimate Guide to Gas Powered Mobile Air Solutions

Introduction

When your job site lacks electrical outlets and you need reliable compressed air for pneumatic tools, a high quality pump air compressor powered by gasoline becomes your most valuable asset. Unlike stationary electric units that keep you tethered to a power source, portable gas driven pump air compressors give you true freedom to work anywhere construction crews mobile mechanics and field service technicians go. This comprehensive guide explains everything you need to know about selecting using and maintaining your pump air compressor investment.

1. What Is a Pump Air Compressor and How Does It Work

A pump air compressor is the heart of any compressed air system. The pump is the mechanical component that draws in atmospheric air and compresses it to a higher pressure storing potential energy in the tank for later use. In gas powered portable units the pump is driven by a gasoline engine rather than an electric motor allowing operation in remote locations where grid power simply does not exist.

📒1.1 Single Stage vs Two Stage Pump Air Compressor Designs

Understanding the difference between single stage and two stage pump air compressor configurations helps you choose the right equipment for your specific workload.

Single Stage Pump Air Compressor: In a single stage design air is compressed once in a single cylinder or set of cylinders before being discharged into the storage tank. These pump air compressor units typically deliver pressures up to around 125-135 PSI and are ideal for most construction and automotive applications including impact wrenches nail guns and tire inflation. HPDMC’s single stage pump air compressor models feature special quality cast iron construction that keeps your air powered tools running reliably in demanding environments.

Two Stage Pump Air Compressor: Two stage designs compress air twice first in a larger low pressure cylinder then in a smaller high pressure cylinder before the air moves to the tank. This configuration produces higher pressures typically up to 175-180 PSI making two stage pump air compressor units better suited for continuous heavy duty industrial applications such as truck repair facilities and large scale construction projects.

📒1.2 Cast Iron Pump Air Compressor Durability

The material used to construct the pump air compressor directly impacts its lifespan and reliability under demanding job site conditions. HPDMC pump air compressor units utilize cast iron and cast cylinder sleeves in pump head construction which significantly enhances durability and longevity. Cast iron is known for its exceptional strength and resistance to wear making it the preferred choice for industrial pump air compressor applications where equipment must withstand continuous operation in harsh environments.

2. Why Choose a Gas Powered Pump Air Compressor for Your Job Site

Gas powered pump air compressor units offer distinct advantages over their electric counterparts particularly for professionals who work across multiple locations or in remote areas without reliable electrical infrastructure.

2.1 True Mobility and Independence from Grid Power

The most compelling reason to select a gas powered pump air compressor is complete independence from electrical outlets. Construction sites often lack power during early phase foundation work and road repairs. Mobile tire service technicians can operate at customer locations without extension cords or generator rentals. Rural mechanics and roadside assistance providers never have to turn away a job due to lack of electrical access.

2.2 Performance Advantages for Demanding Applications

Gasoline engine driven pump air compressor units deliver robust air flow that meets or exceeds the requirements of most professional grade pneumatic tools. HPDMC’s 6.5HP pump air compressor models deliver 11-17 CFM at pressures up to 125 PSI comfortably powering impact wrenches spray guns and multiple tools simultaneously. For heavier workloads the 13HP gasoline pump air compressor delivers 24 CFM at 180 PSI with a 30 gallon ASME certified tank making it suitable for continuous industrial duty.

3. How to Select the Right Pump Air Compressor for Your Needs

Choosing the optimal pump air compressor requires careful evaluation of several technical factors. Making an informed decision ensures your equipment matches both your current requirements and future workload expectations.

📌3.1 Understanding CFM and PSI Requirements

The most important specification when selecting a pump air compressor is CFM the volume of compressed air the pump delivers at a given PSI pressure. To determine your actual requirement identify the pneumatic tool with the highest CFM demand then select a pump air compressor unit that exceeds that number by 20 to 30 percent.

For professionals looking to purchase a reliable pump air compressor HPDMC offers the Portable Gasoline Power Piston Air Compressor 6.5HP which delivers 11-17 CFM at 125 PSI maximum working pressure powered by a Kohler gasoline engine with a special quality cast iron single stage pump that keeps your air tools running reliably.

📌3.2 Engine Quality and Pump Matching

The engine and pump combination determines the overall reliability of any gas driven pump air compressor. Never compromise on engine quality as a poor engine leads to constant downtime and lost productivity. HPDMC equips their pump air compressor units with reliable engines from industry leading manufacturers like KOHLER and LONXIN ensuring dependable starting consistent power delivery and extended service life across thousands of operating hours.

📌3.3 Portability Features That Matter

Look for pump air compressor models with heavy duty pneumatic wheels that roll smoothly across uneven construction terrain. Integrated handles for easy maneuvering and compact footprints for storage between job sites make daily operation more efficient. Wheelbarrow style dolly designs provide ideal balance and mobility while some pump air compressor models can be mounted directly on service trucks for integrated mobile repair operations.

4. Essential Maintenance Tips for Long Pump Air Compressor Life

Proper maintenance dramatically extends the service life of any pump air compressor. Following a consistent maintenance schedule prevents unexpected breakdowns and protects your equipment investment.

4.1 Regular Oil Changes for Pump and Engine

Change the engine oil every 50 hours of operation or as specified in your owner‘s manual. Fresh oil reduces friction prevents engine overheating and maintains optimal compression efficiency. Always use the manufacturer recommended oil viscosity for your operating environment. The pump air compressor itself may have separate lubrication requirements depending on whether it is an oil lubricated or oil free design.

4.2 Air Filter Inspection for Pump Protection

A clogged air filter restricts airflow to both the engine and the pump air compressor intake reducing overall efficiency and straining components. Inspect the air filter before each use particularly in dusty construction environments. Clean or replace it according to the maintenance schedule to ensure maximum CFM output and fuel economy. A well maintained air intake is essential for pump longevity.

4.3 Daily Tank Drainage After Each Use

After each use drain moisture from the air tank. Condensation accumulates naturally during compression cycles if left standing moisture causes internal rust contaminates air tools and eventually compromises tank integrity. Locate the drain valve at the tank‘s lowest point and open it until no moisture remains. This simple daily practice protects both your tank and your pump air compressor from corrosion damage.

For heavy duty applications requiring a powerful pump air compressor HPDMC offers the 13HP Gas Air Compressor 24CFM 180PSI with Electric Start featuring a commercial grade 13HP gasoline engine and 30 gallon ASME certified tank ideal for truck repair facilities and heavy construction where continuous duty performance is essential.

5. Frequently Asked Questions About Pump Air Compressor Units

Q: What is the difference between an air compressor and a pump air compressor?

A: The term “pump air compressor” specifically emphasizes the pump component which is the actual mechanical device that compresses air. While all air compressors contain a pump, referring to a pump air compressor unit highlights the quality and design of the compression mechanism itself particularly important when comparing cast iron single stage pumps versus lower grade alternatives. HPDMC’s pump air compressor units feature special quality cast iron pump construction for maximum durability.

Q: Can I use a gas pump air compressor indoors?

A: Absolutely not. Gas engines produce carbon monoxide a colorless odorless poison that can kill in minutes. HPDMC explicitly warns: “Using an engine indoors can kill you in a matter of minutes. Never use it inside a house or garage even if the doors and windows are open. Only use outside and away from windows doors and vents.” For indoor compressed air needs choose an electric pump air compressor instead.

Q: What CFM should I look for in a pump air compressor for construction tools?

A: Add the CFM requirements of all tools you plan to run simultaneously at 90 PSI then add a 20 to 30 percent buffer for peak demand. For typical construction applications including impact wrenches and nail guns a pump air compressor delivering 11-17 CFM like HPDMC‘s 6.5HP model is sufficient. For heavier continuous duty requirements such as sandblasting or operating multiple spray guns simultaneously a 24 CFM pump air compressor unit is recommended.

Q: How portable are gas pump air compressor units?

A: HPDMC gas pump air compressor units feature convenient wheelbarrow style dolly designs with large pneumatic wheels and integrated handles making them easy to roll across job sites construction terrain and service yards. The 6.5HP model can also be mounted on trucks or service vehicles for integrated mobile operations. This level of portability makes gas pump air compressor units the preferred choice for professionals who work across multiple locations daily.

Q: What warranty coverage does HPDMC provide for pump air compressor units?

A: HPDMC provides a one year warranty with the air end pump receiving a two year warranty plus lifetime maintenance support. Their after sales team ensures parts availability and technical assistance for the life of your pump air compressor equipment. This warranty coverage reflects the confidence HPDMC places in their cast iron pump designs and overall manufacturing quality.

6. Shop Premium Pump Air Compressor Units at HPDMC

Ready to equip your job site with dependable mobile air power featuring high quality pump air compressor designs? Browse HPDMC’s curated selection of pump air compressor models engineered specifically for professional applications:

🛒 Portable Gasoline Power Piston Air Compressor 6.5HP – Powered by Kohler gasoline engine delivering 11-17 CFM airflow at 125 PSI max working pressure with a special quality cast iron single stage pump and durable cast iron wheelbarrow frame for ideal portability.

🛒 13HP Gas Air Compressor 24CFM 180PSI with Electric Start – Commercial grade 13HP gasoline engine pump air compressor delivering 24 CFM airflow at 180 PSI max pressure with 30 gallon ASME certified tank and electric start for effortless operation ideal for truck repair facilities and heavy construction.

🛒 4500psi High Pressure Pump Air Compressor for Paintball Scuba SCBA – Specialized high pressure pump air compressor available with petrol or electric motors both three phase and single phase equipped with HPDMC pumping unit working pressures from 232 to 330 bar ideal for diving paintball and firefighting applications.
