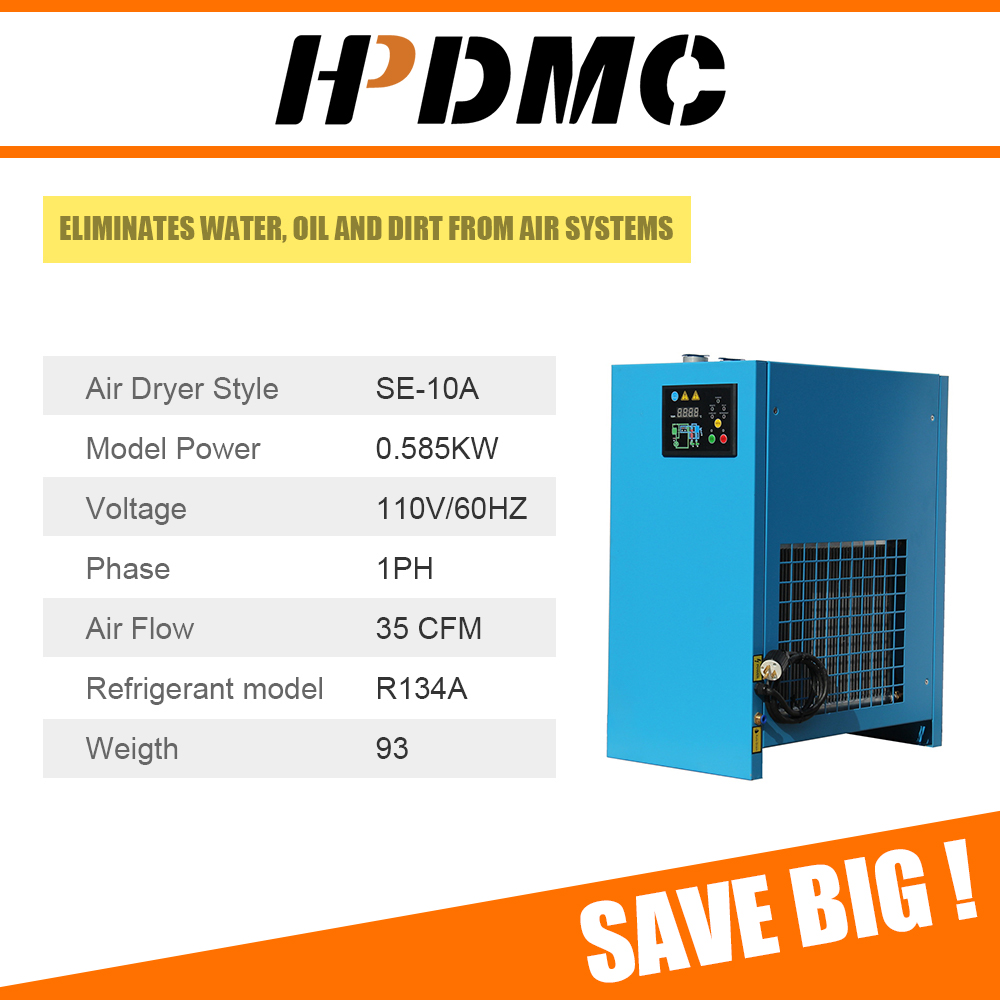

HPDMC's SE Series is a non-cycling refrigerated air dryer engineered for high performance and energy efficiency—ideal for compressed air systems with relatively constant loads. Here are its standout features and technical specifications:

✅ Core Specifications

⚙️ Refrigerant: Environmentally friendly 134Ra – compliant with global environmental standards

🧠 Control System: Advanced microprocessor control for precise operation and real-time monitoring

🌡️ Dew Point Performance: Maintains consistent dew point at approximately +39°F (+4°C)

💧 Drain System: Zero-loss condensate drain – saves energy while ensuring maximum moisture removal

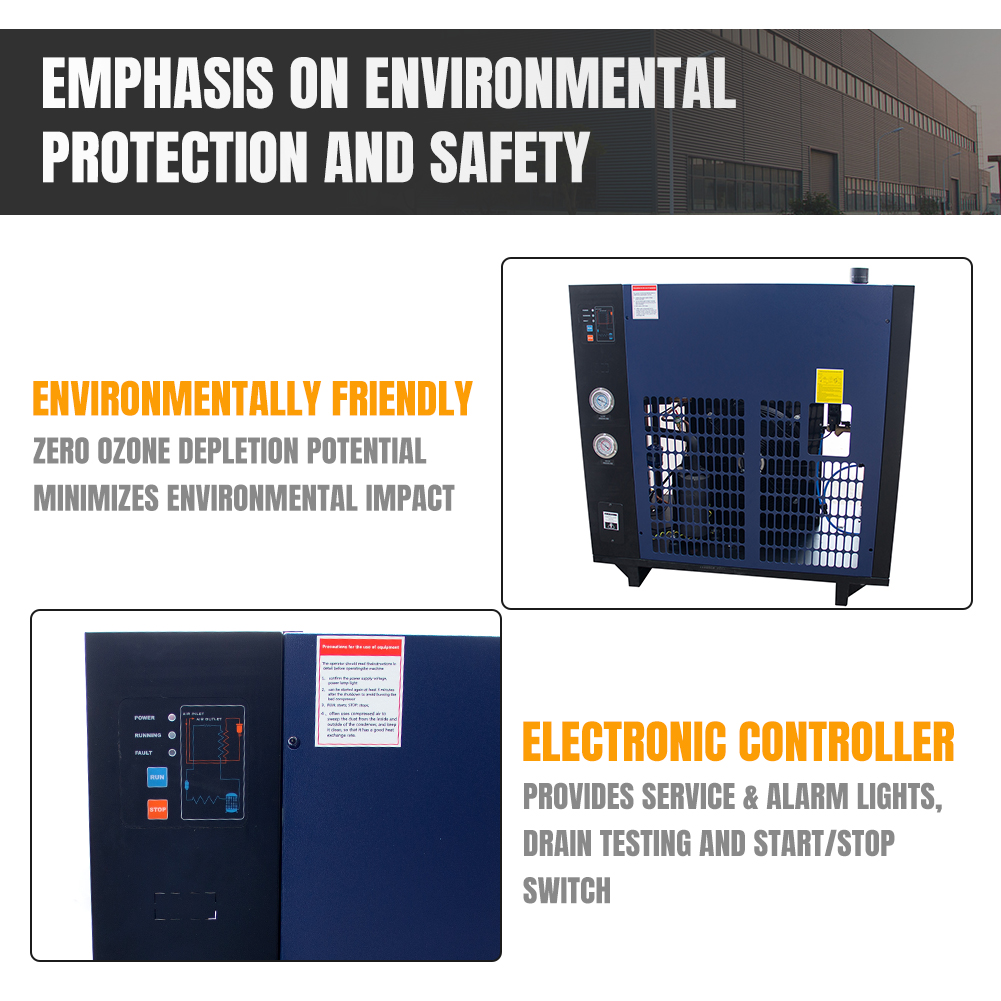

🔒 Safety & Convenience: Lockable start/stop switch, refrigerant system flow/run/alarm indicator lights, and analyzer gauge

🔧 Additional Features:

● Low pressure drop

● Integrated moisture separator

● Five-step centrifugal separation technology

👉 Explore the full product details and specifications here: HPDMC SE Series Refrigerated Air Dryer

✅ Ideal Applications

✔️ Small to medium-sized compressed air systems with constant load demands

✔️ Industries requiring clean, dry air, such as:

● Manufacturing

● Automotive

● Electronics

● Food & beverage processing

✔️ Environments where pipe sweating or moisture-related equipment damage is a concern💡 The SE Series ensures your downstream tools, pneumatic systems, and end products remain protected from water contamination.

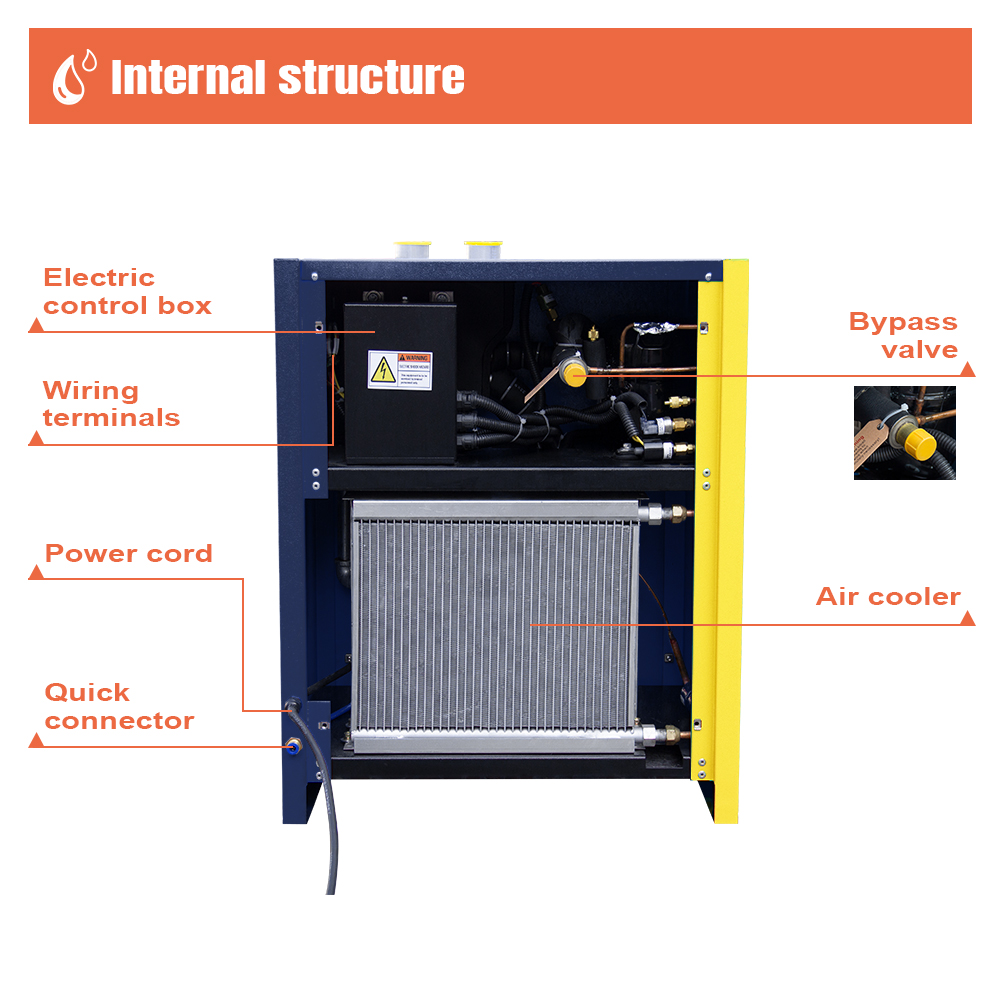

❓ How Does a Refrigerated Air Dryer Work? (HPDMC SE Series Principle)

A refrigerated air dryer removes moisture by cooling compressed air until water vapor condenses into liquid, which is then separated and drained. The HPDMC SE Series uses an advanced two-stage heat exchanger system to optimize this process.

🔁 3.1 Two-Stage Heat Exchanger System

The dual-stage design maximizes thermal efficiency:

❄️ First Stage (Pre-Cooling):

Warm, wet compressed air enters the first heat exchanger, where it is cooled by the outgoing cold, dry air — recovering energy and reducing refrigeration load.

🧊 Second Stage (Refrigeration):

The pre-cooled air passes through the refrigeration circuit and is chilled to ~+39°F (+4°C) — the temperature at which most moisture condenses into liquid.

💦 3.2 Moisture Condensation & Separation Process

Once cooled to dew point:

● Water vapor condenses into droplets

● The air-liquid mix enters the cold-point moisture separator

● Five-step centrifugal separation efficiently captures liquid droplets

● Collected condensate is removed via a zero-loss drain that activates only when liquid is present → no compressed air wasted!

✅ Result: High-efficiency moisture removal with minimal energy loss.

🔥 3.3 Reheating: Avoid Pipe Sweating & Maximize Air Volume

After drying, the cold air returns to the first stage (cold side of heat exchanger), where it is reheated by incoming warm air. This critical step:

✅ Prevents pipe sweating (reducing corrosion risk)

✅ Increases air volume (improving downstream efficiency)

✅ Delivers usable-temperature air directly to your tools and processes

🌡️ Smart thermal recovery = lower operating costs + longer system life.

Why Choose HPDMC’s Refrigerated Air Dryer? (SE Series Advantages)

Investing in the HPDMC SE Series delivers long-term value across your operations:

🟢 Consistent Dew Point Performance

Non-cycling design with modulating refrigeration valves ensures stable +39°F (+4°C) control — preventing rust, contamination, and process failures.

⚡ Energy Efficiency

Zero-loss drain + two-stage heat recovery = lower energy consumption vs. conventional dryers.

🌍 Environmental Compliance

Uses 134Ra refrigerant — non-ozone-depleting and compliant with EPA and international regulations.

🛡️ Durability & Reliability

Built with premium components, lockable controls, alarm indicators, and corrosion-resistant materials for trouble-free operation.

🛠️ Easy Operation & Maintenance

Microprocessor display and clear indicator lights simplify monitoring; accessible design allows quick servicing.

🧭 How to Select the Right Refrigerated Air Dryer for Your System

Follow these 5 steps to ensure optimal performance:

Step 1: Determine Your Air Flow Requirements 💨

Calculate your system’s max airflow in CFM or m³/min. The dryer must match or exceed this capacity.

➡️ HPDMC SE Series offers multiple models—check product page for flow ratings.

Step 2: Consider Operating Pressure & Temperature ⚙️

Ensure compatibility with:

● System pressure (typically 80–120 PSI)

● Ambient temperature (standard industrial environments)

Step 3: Evaluate Dew Point Needs 🌡️

Most general applications require +35°F to +40°F dew point — perfectly matched by the SE Series.

⚠️For ultra-dry needs (e.g., labs, pharma), consider desiccant dryers

Step 4: Prioritize Energy-Saving Features 💡

Choose models with:

● Zero-loss drains

● Heat recovery systems

✅Reduces lifetime operating costs significantly.

Step 5: Choose a Trusted Brand ✅

Select reputable manufacturers like HPDMC for quality assurance, warranty coverage, and responsive after-sales support.

🔗 Complementary Compressor Accessories to Pair with Your Refrigerated Air Dryer

Maximize system performance by pairing your SE Series dryer with these essential accessories:

🌀 Air Compressor Filters

Remove dust, oil aerosols, and particulates before air reaches the dryer — protects internal components and improves air quality.

📘 Learn more: Air Compressor Filters: Complete Guide

🛠️ Air Compressor Pumps

Ensure steady, high-efficiency airflow to maintain optimal dryer performance.

📘 Get tips: Air Compressor Pump: Maintenance & Buying Guide

3. 🔧 Other Compressor Accessories

From pressure regulators to hoses, fittings, and gauges — complete your setup with HPDMC’s full lineup.

🌐 Browse now: HPDMC Compressor Mall

🎁 Bundle Tip: Combine your SE Series dryer + air filters for a discounted package!

✅ Summary: Invest in HPDMC’s SE Series for Reliable Air Treatment

Moisture in compressed air silently damages equipment, contaminates products, and increases downtime.

The HPDMC SE Series Refrigerated Air Dryer delivers:

● Consistent +39°F (+4°C) dew point

● Energy-saving zero-loss drain

● Eco-friendly 134Ra refrigerant

● Microprocessor precision control

It's the ideal solution for constant-load systems seeking reliable, efficient, and sustainable air treatment.

🔌 Pair it with HPDMC air filters, pumps, and accessories for a fully optimized compressed air system — and enjoy peace of mind knowing your air is clean, dry, and ready for any application.

❓ FAQ: Common Questions About Refrigerated Air Dryers

Q1: What is the difference between cycling and non-cycling refrigerated air dryer?

🔁 Cycling dryers: Turn compressor on/off based on demand — good for variable loads.

⏸️ Non-cycling (SE Series): Uses modulating valves to adjust refrigerant flow — best for constant-load systems.

Q2: How often should I maintain my refrigerated air dryer?

📅 Daily: Check indicator lights and drain function

📆 Monthly: Clean heat exchanger fins, inspect filters

🗓️ Annually: Service refrigeration system, check refrigerant levels

📘 Refer to the SE Series manual for full schedule.

Q3: Can refrigerated air dryer handle high-humidity environments?

Yes — designed for standard industrial humidity. For extreme conditions, ensure proper ventilation and monitor dew point regularly.

Q4: What’s the benefit of a zero-loss drain?

Only releases condensate, not compressed air — eliminates waste and cuts energy costs compared to timed drains.

Q5: Is 134Ra refrigerated air dryer environmentally safe?

✅ Yes — non-ozone-depleting, compliant with EPA and global regulations. A sustainable choice for modern businesses.

🛒✨Shop HPDMC’s SE Series refrigerated air dryers & Compressor Solutions Today

✅ Final Word: With HPDMC, you're not just buying a dryer — you're investing in system reliability, energy savings, and operational excellence.

🌬️ Dry air. Smart design. Superior performance.

👉 Upgrade to the SE Series today.
