For any air compressor to run efficiently, last long, and deliver clean output, three core Air compressor filters—Air Filter, Oil Filter, and Oil Separator—are non-negotiable. Known as the "three essential filters", the 3 critical air compressor filters work in tandem to block contaminants, protect internal components, and ensure pure compressed air.

Neglecting even one of the air compressor filters can lead to costly breakdowns, reduced performance, and wasted energy. Below is a complete guide to the roles, risks of neglect, maintenance—and genuine replacement solutions of the 3 critical air compressor filters from HPDMC.

🔍1. Air Compressor Filters Function Comparison Table

✅ Use this table as your quick-reference checklist for air compressor filters maintenance planning.

🧩 2. Detailed Breakdown of Each Air Compressor Filter

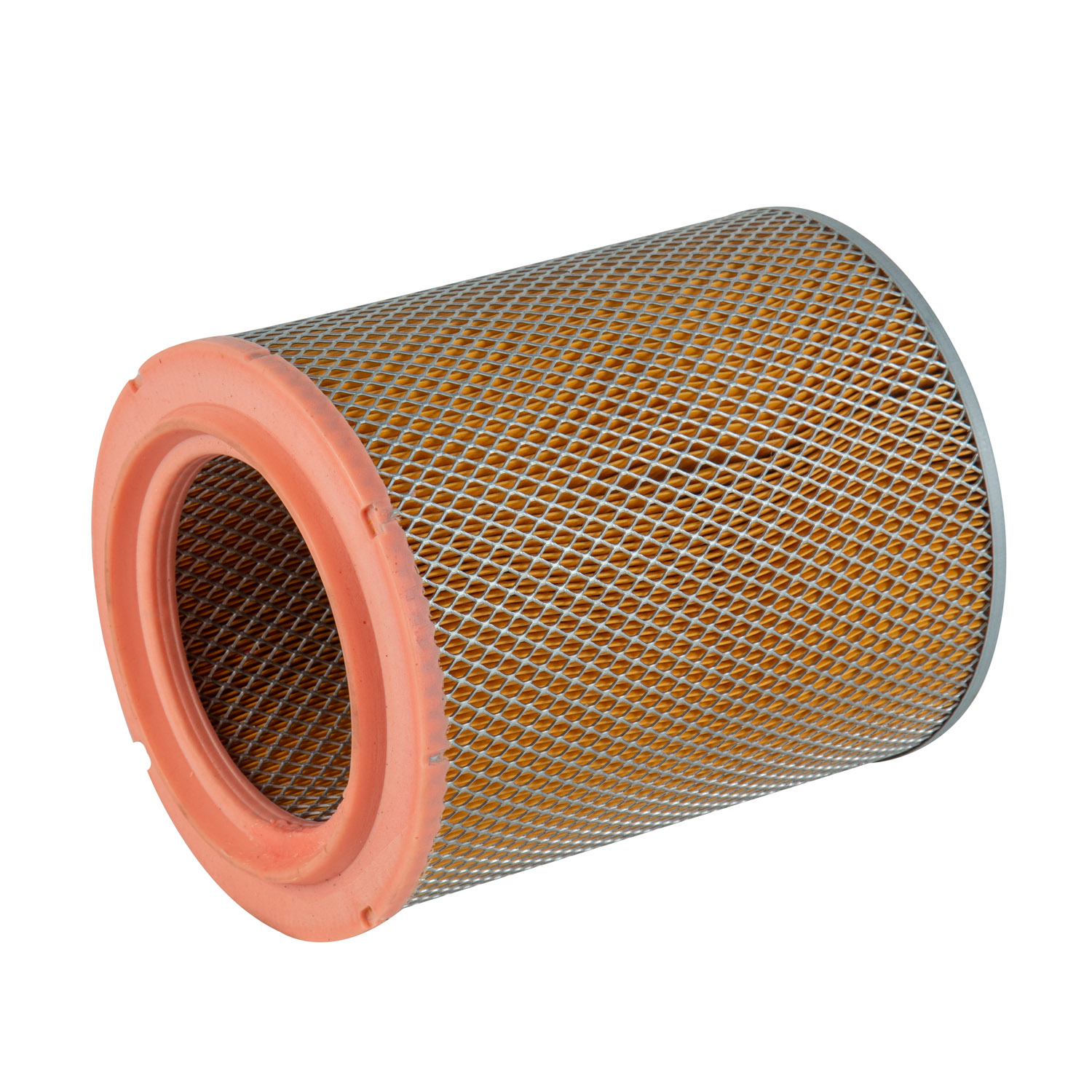

2.1 Air Filter (A Key Component of Air Compressor Filters)

🔹 Genuine HPDMC Replacement: Shop Now

✅ Function & Working Principle

The Air Filter acts as the compressor’s "nose guard." When the pump draws in air (up to 100 CFM for industrial models), its porous material (e.g., paper, foam) traps particles as small as 5 microns—including dust, sand, and pollen.

This prevents:

● Scratching of cylinder walls

● Wear on piston rings

● Clogging of valves

A clean Air Filter ensures:

● Smooth airflow into the pump

● Reduced friction and energy use

● Longer life for critical pump components

⚠️ What Happens If You Don’t Replace It?

A clogged Air Filter forces the pump to work harder, leading to:

❌ 15–20% higher electricity bills

❌ Pump overheating due to restricted airflow

❌ Premature wear from bypassed contaminants

❌ Reduced airflow output (tools lose power)

❌ Risk of pump seizure—repair costs can reach 50% of a new compressor

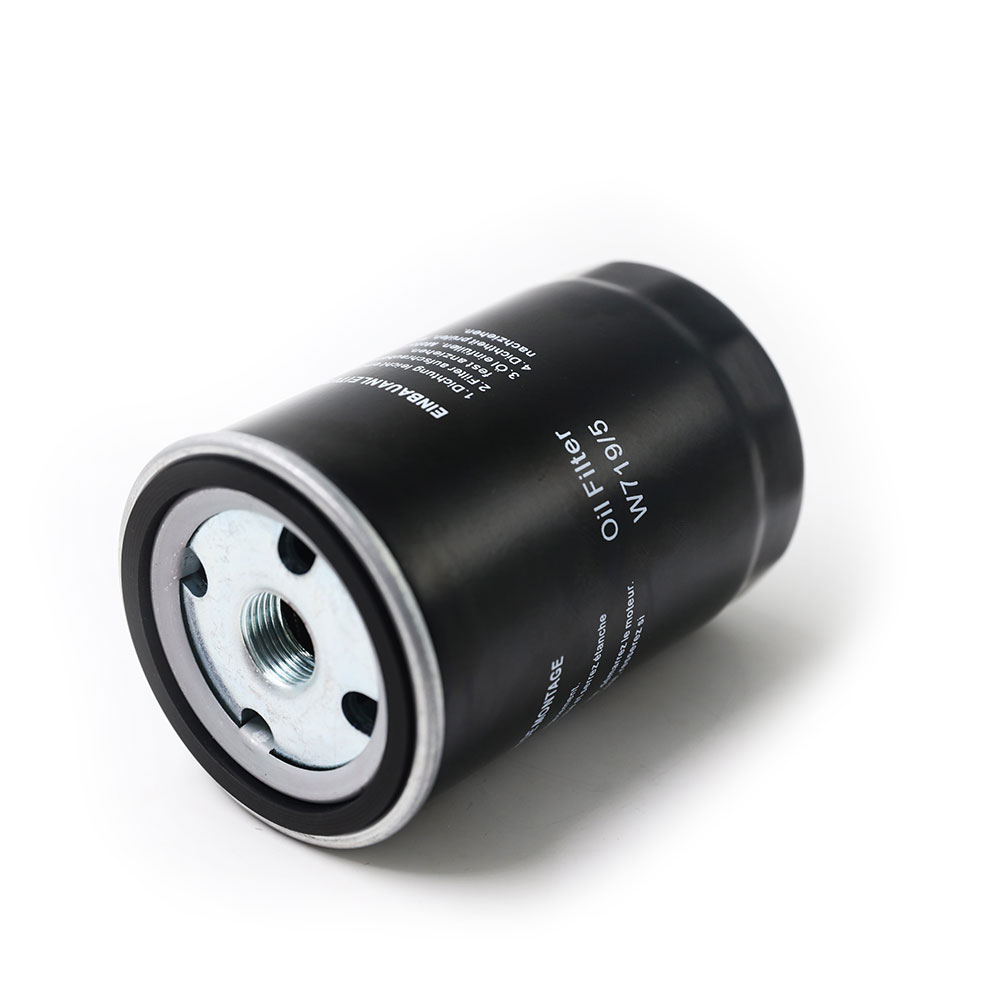

2.2 Oil Filter (A Critical Part of Air Compressor Filters)

🔹 Genuine HPDMC Replacement: Shop Now

✅ Function & Working Principle

Compressor oil lubricates, cools, and seals moving parts like pistons, bearings, and the crankshaft. Over time, it collects:

● Metal shavings (from normal wear)

● Sludge (from thermal/oil breakdown)

The Oil Filter uses pleated or mesh elements to capture these impurities before recirculation, ensuring:

● Clean oil for smooth operation

● Consistent viscosity (no thickening)

● Unobstructed oil flow through channels

⚠️ What Happens If You Don’t Replace It?

Contaminated oil circulates unchecked, causing:

❌ Scored cylinder walls and worn piston rings

❌ Degraded seals → oil leaks

❌ Poor heat dissipation → pump overheating

❌ Complete pump failure if oil flow is blocked

❗ Neglecting the Oil Filter is the #1 cause of compressor breakdowns, averaging 300–300–800 in repairs.

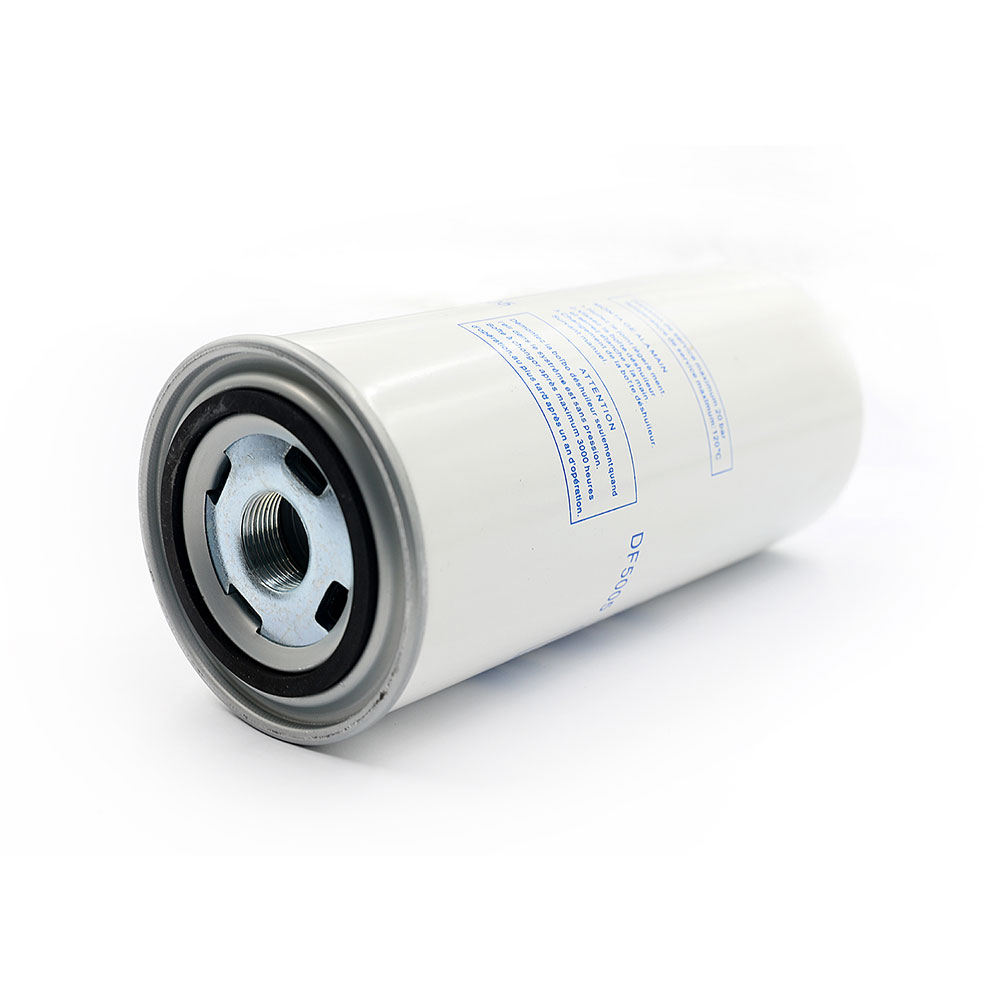

2.3 Oil Separator(An Essential Air Compressor Filter)

🔹 Genuine HPDMC Replacement: Shop Now

✅ Function & Working Principle

In oil-lubricated compressors, oil mixes with compressed air during compression. The Oil Separator uses a coalescing element to trap tiny oil droplets:

● Droplets stick to the filter media

● Merge into larger drops

● Drain back to the oil tank

Result: Air with ≤5 ppm oil content, essential for:

● Protecting pneumatic tools (oil damages O-rings)

● Flawless paint jobs (no residue)

● Compliance in food, medical, and electronics industries

⚠️ What Happens If You Don’t Replace It?

A failing separator leads to:

❌ Sputtering tools (oil clogs internals)

❌ Ruined finishes (stains, runs in spray painting)

❌ Increased oil consumption (loss via exhaust)

❌ Environmental compliance violations

2.4 Core Function Summary of the Three Air Compressor Filters: The Protective Triangle

Together, the three filters form a "protective triangle" that safeguards your entire system:

🔺 Missing any one breaks the triangle. A clean Air Filter won’t fix oily air; a new Oil Filter won’t save a pump damaged by dirty intake air.

🔧 3. Maintenance Tips for Air Compressor Filters (Air, Oil & Oil Separator)

Proper care extends your compressor’s lifespan by 5–10 years and cuts operating costs by up to 40%.

✅ Best Practices:

● Follow Replacement Cycles: Refer to the comparison table, but adjust for harsh environments (e.g., replace Air Filter every 3 months in dusty workshops).

● Inspect Monthly:Check Air Filter for visible dirt/clogging.

○ Look for Oil Filter leaks during oil changes.

○ Test Oil Separator: Place a dry paper towel at the air outlet; oil spots = time to replace.

● Use Genuine Parts: Off-brand filters often have poor fit or filtration efficiency.

● Go Eco-Friendly:Clean reusable foam Air Filters with mild soap and water.

○ Recycle used filters responsibly.

○ See our full Eco-Friendly Compressor Maintenance Guide for more tips.

✅ Summary: Protect Your Compressor with Reliable Air Compressor Filters

The Air Filter, Oil Filter, and Oil Separator are the backbone of reliable compressor performance. Each plays a unique role:

● Preventing mechanical damage

● Ensuring operational efficiency

● Delivering clean, usable compressed air

By using genuine HPDMC filters and following recommended maintenance practices, you’ll:

✅ Avoid costly repairs

✅ Reduce energy consumption

✅ Extend equipment life

✅ Maintain consistent tool and process quality

❓FAQ: Common Questions About the Three Air Compressor Filters

Q1: Can I use off-brand Air compressor filters instead of genuine HPDMC ones?

Not recommended. Off-brand air compressor filters may have incorrect dimensions (leaks, poor fit) or inferior media (ineffective filtration). HPDMC genuine filters are engineered to match your model exactly.

Q2: My compressor is new—do I still need to replace Air compressor filters on schedule?

Yes. New units generate initial wear particles, and Air Filters collect dust immediately. Sticking to the schedule prevents early damage.

Q3: Are there reusable options for Air compressor filters?

Only foam-type Air Filters can be cleaned and reused. Oil Filters and Oil Separators are disposable due to irreversible media clogging.

Q4: How do I test my Oil Separator?

Hold a clean, dry paper towel over the air outlet while running the compressor for 1–2 minutes. Faint mist = good. Visible oil spots/drips = replace now.

Q5: Will replacing Air compressor filters improve energy efficiency?

Absolutely. A clean Air Filter reduces resistance (cuts energy use by 15–20%). Fresh Oil and Separator filters reduce friction and airflow drag—saving power across the board.

🛒Shop HPDMC’s Genuine Air Compressor Filters (Single & Combo Packs)

Avoid risking your compressor with low-quality replacements. Choose HPDMC genuine air compressor filters for perfect fit, optimal performance, and lasting protection.

We offer both individual filters and cost-saving combo packs:

✅ Final Tip: Regular air compressor filters maintenance isn't an expense—it's an investment in uptime, efficiency, and longevity. Trust HPDMC to keep your compressor protected, one filter at a time.
