In the bustling world of auto repair, compressed air is the lifeblood that powers a wide array of essential tools and processes. From inflating tires and operating pneumatic wrenches to powering paint sprayers in body shops, a reliable source of compressed air is non - negotiable. When it comes to choosing the right compressor for an auto repair shop, two popular options stand out: piston compressors and screw compressors. Each has its own set of characteristics, advantages, and limitations that can significantly impact the efficiency, cost - effectiveness, and overall performance of an auto repair operation.

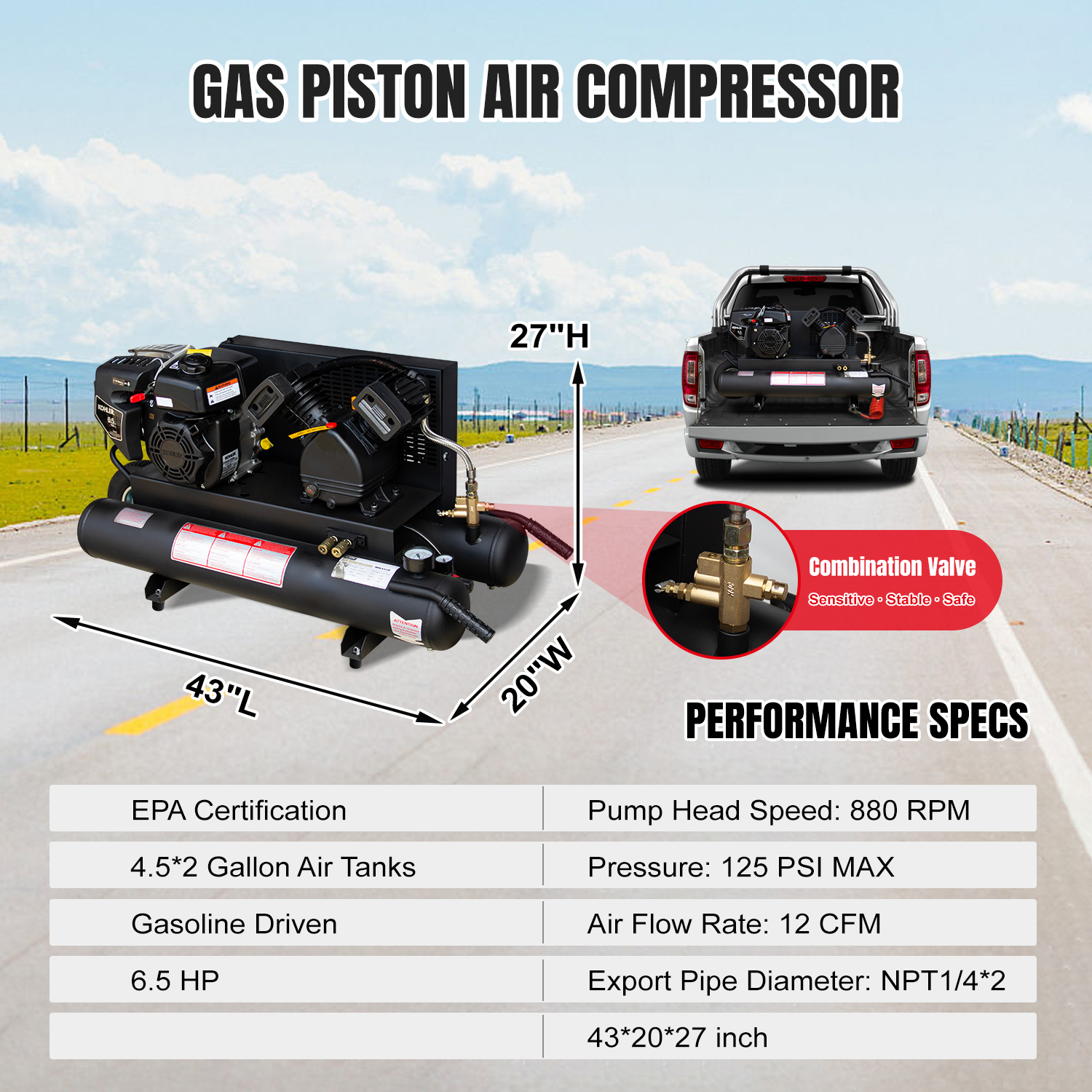

Piston Compressors: The Traditional Workhorse
How Piston Compressors Work
Piston compressors operate on a relatively straightforward principle. They use pistons that are driven by a crankshaft. As the piston moves back and forth within a cylinder, air is drawn in during the intake stroke and then compressed during the compression stroke. The compressed air is then discharged into a storage tank for later use. This reciprocating motion is similar to that of an internal combustion engine, and it's a technology that has been around for a long time, making piston compressors a well - understood and trusted choice in many industries, including auto repair.
Advantages of Piston Compressors in Auto Repair
Cost - Effective Initial Investment
Piston compressors are often more affordable to purchase upfront compared to screw compressors. This makes them an attractive option for small auto repair shops or those on a tight budget. For example, a basic piston compressor suitable for a small - scale tire shop or a neighborhood mechanic's garage can be purchased at a relatively low cost, allowing new businesses or those looking to save on capital expenditures to get up and running without a large financial outlay.
Simple and Familiar Technology
The technology behind piston compressors is relatively simple, with fewer complex components compared to screw compressors. This simplicity makes them easier to understand, maintain, and repair, even for those with limited technical knowledge. Mechanics in auto repair shops may already be familiar with the basic principles of piston - based systems due to their similarity to engine components. As a result, in - house maintenance and minor repairs can often be carried out without the need to call in expensive external technicians, reducing downtime and maintenance costs.
Good for Intermittent Air Demand
Auto repair work often involves periods of intermittent air usage. Piston compressors are well - suited to such applications. They can be started and stopped as needed, and they can quickly build up pressure in the storage tank when air is required. For instance, in a shop where tasks like occasional tire inflation or using a pneumatic impact wrench for a few minutes at a time are common, a piston compressor can efficiently meet these short - term, intermittent air demands without consuming excessive energy when not in use.
High - Pressure Capability
Piston compressors are capable of generating high - pressure air, which can be beneficial in certain auto repair tasks. For example, when performing high - pressure cleaning of engine parts or using specialized high - pressure pneumatic tools, the ability of a piston compressor to deliver air at the required pressure levels makes it a suitable choice.
Disadvantages of Piston Compressors in Auto Repair
Limited Duty Cycle
Piston compressors are generally designed for intermittent use and have a limited duty cycle. They are typically rated to operate for 50 - 60% of their total running time, which means they need significant periods of rest to cool down. In a busy auto repair shop with high and continuous air demand, such as a large - scale body shop where paint sprayers and multiple pneumatic tools are in constant use, a piston compressor may struggle to keep up. Running a piston compressor beyond its recommended duty cycle can lead to overheating, premature wear of components, and ultimately, breakdowns.
High Noise Levels
The reciprocating motion of the pistons in a piston compressor creates a significant amount of noise during operation. In an auto repair shop environment, where noise levels can already be high, this additional noise can be a nuisance. It can also make communication between mechanics difficult and may even lead to complaints from neighboring businesses or residents if the shop is located in a commercial or residential area. For example, in a shop located in a strip mall, the loud operation of a piston compressor could disrupt the peace of nearby stores and customers.
Poor Air Quality
Piston compressors often produce air that contains a significant amount of oil and moisture. The oil comes from the lubrication system within the compressor, and the moisture is a by - product of the compression process. In auto repair, especially in tasks like painting, this contaminated air can be a major problem. Oil and moisture in the air supply can cause defects in the paint finish, such as blotches, bubbles, or a rough texture. To use a piston compressor for painting applications, additional and often costly air treatment equipment, such as oil filters, moisture separators, and dryers, need to be installed to clean the air.
High Maintenance Requirements
Due to their many moving parts, including pistons, piston rings, connecting rods, and valves, piston compressors require regular maintenance. These components are subject to wear and tear over time, and replacing them can be both time - consuming and expensive. For example, piston rings may need to be replaced every few hundred hours of operation, and valves can become clogged or damaged, affecting the compressor's performance. Regular maintenance tasks also include oil changes, filter replacements, and inspections to ensure proper alignment and operation of all components.

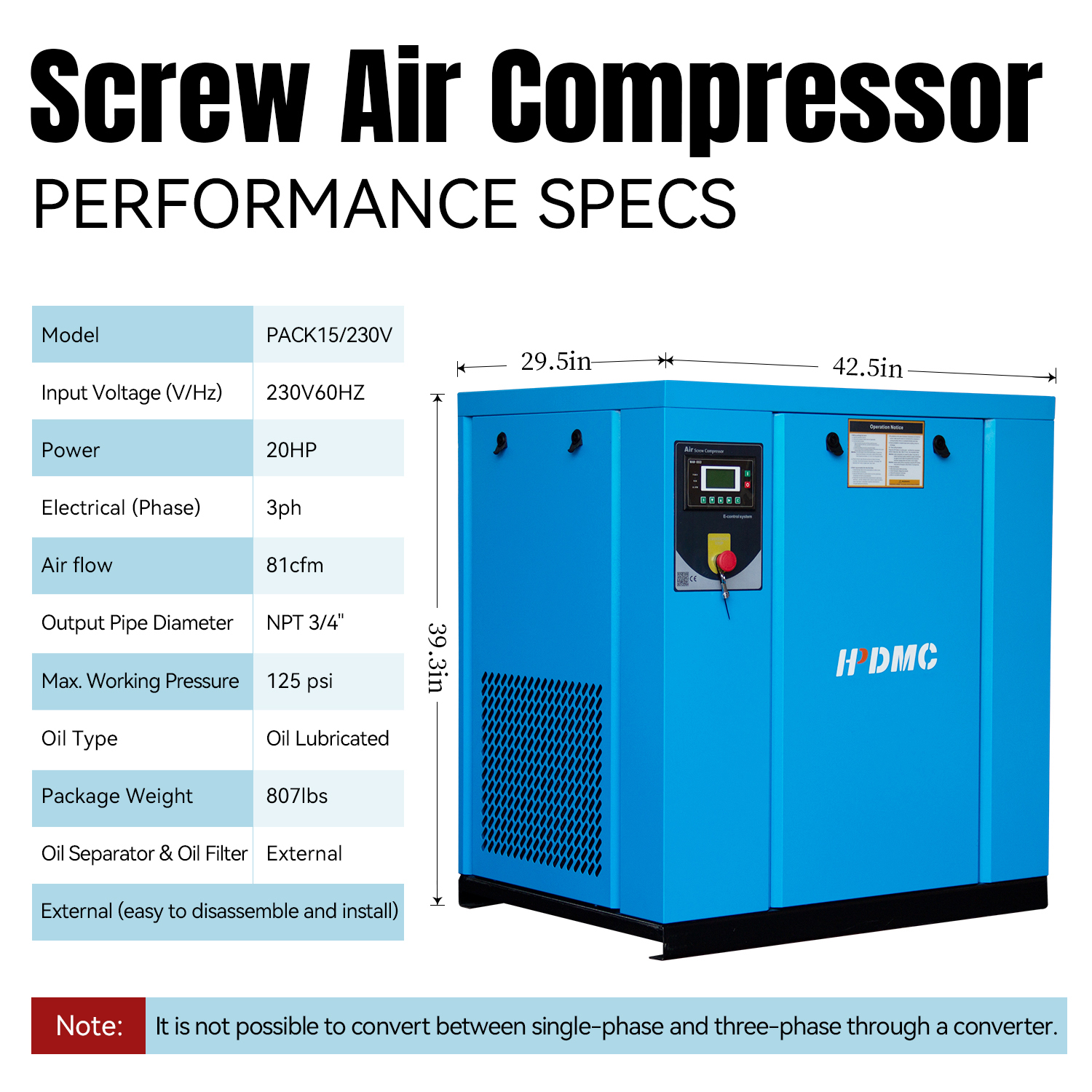

Screw Compressors: The Modern Alternative
How Screw Compressors Work
Screw compressors use two meshing helical screws, also known as rotors. As the rotors turn, air is trapped in the cavities between the threads of the screws. As the rotors continue to rotate, these cavities move towards the discharge end of the compressor, and the air is compressed as the volume of the cavities decreases. The compressed air is then discharged from the compressor. This continuous compression process provides a more stable and consistent air supply compared to the intermittent nature of piston compressors.
Advantages of Screw Compressors in Auto Repair
Continuous and Reliable Air Supply
Screw compressors are designed to run continuously, providing a constant and reliable supply of compressed air. This is particularly beneficial in auto repair shops with high and steady air demand. For example, in a large body shop where multiple paint sprayers are operating simultaneously, a screw compressor can ensure a consistent air pressure to all the sprayers, resulting in a more even and high - quality paint finish. The continuous operation also means that there are no sudden drops in air pressure during periods of peak usage, which can be a problem with piston compressors.
High Energy Efficiency
In many cases, screw compressors are more energy - efficient than piston compressors, especially when operating at full load. They are designed to run continuously, and their compression process is more streamlined, resulting in less energy wastage. For instance, a variable - speed drive (VSD) screw compressor can adjust its speed according to the air demand, consuming only the amount of energy required. This can lead to significant energy savings over time, which is not only environmentally friendly but also cost - effective for the auto repair shop.
Low Noise and Vibration
Screw compressors operate much more quietly and with less vibration compared to piston compressors. The smooth rotation of the rotors reduces the mechanical noise and vibration associated with the reciprocating motion of pistons. This quieter operation is not only more pleasant for the mechanics working in the shop but also less likely to cause disruptions to the surrounding area. A quieter work environment can also contribute to better concentration and productivity among the staff.
High - Quality Air Output
Screw compressors produce air that is generally cleaner and drier compared to piston compressors. The compression process in screw compressors generates less heat, which reduces the amount of moisture in the air. Additionally, they often come with built - in or optional advanced air treatment systems, such as oil - free compression options and efficient after - coolers, which can further improve the air quality. This makes screw compressors an ideal choice for applications in auto repair where clean air is crucial, such as painting and operating sensitive pneumatic tools.
Disadvantages of Screw Compressors in Auto Repair
Higher Initial Cost
Screw compressors typically have a higher upfront cost compared to piston compressors. The more complex technology, precision manufacturing, and advanced features of screw compressors contribute to their higher price tag. For a small auto repair shop with limited funds, this higher initial investment may be a deterrent. However, it's important to consider the long - term benefits and cost - savings that a screw compressor can offer in terms of energy efficiency and reduced maintenance requirements.
Complex Maintenance and Repairs
While screw compressors generally require less frequent maintenance compared to piston compressors, when maintenance or repairs are needed, they can be more complex and expensive. The precision - made rotors and other internal components of screw compressors require specialized tools and expertise to service. In many cases, factory - trained technicians may be required to perform major repairs, which can result in higher labor costs. Additionally, replacement parts for screw compressors can be more expensive due to their specialized nature.
Limited Mobility (in some cases)
Some larger screw compressors are designed for stationary use and may not be as easily portable as smaller piston compressors. In an auto repair shop where the need to move the compressor around the shop or to different work locations is common, this lack of mobility can be a drawback. However, there are also smaller, portable screw compressor models available, but they may not offer the same high - volume air output as their larger, stationary counterparts.
Which is Right for Your Auto Repair Shop?
Choosing between a piston compressor and a screw compressor for an auto repair shop depends on several factors:
Air Demand and Usage Patterns
- Intermittent and Low - Volume Demand: If your shop has mainly intermittent air usage and low - volume requirements, such as a small tire shop that only uses air for inflating tires and occasional use of a pneumatic impact wrench, a piston compressor may be sufficient. Its ability to start and stop as needed and its lower cost make it a practical choice.
- Continuous and High - Volume Demand: For shops with continuous and high - volume air demand, such as large body shops or those with multiple bays where pneumatic tools are in constant use, a screw compressor is a better option. Its continuous operation and ability to supply a stable air flow can meet the demands of a busy shop without performance issues.
Budget Constraints
- Tight Budget: If you are operating on a tight budget and need to keep the initial investment low, a piston compressor may be the way to go. However, be aware of the potential long - term costs associated with maintenance and energy consumption.
- Willing to Invest for Long - Term Savings: If you have the financial resources and are looking for long - term savings in terms of energy efficiency and reduced maintenance, a screw compressor, especially a VSD - equipped one, can be a wise investment.
Air Quality Requirements
- Low - Tolerance for Contaminated Air: In tasks like painting, where clean air is essential to achieve a high - quality finish, a screw compressor with its better air quality output is the preferred choice. If you plan to use the compressed air for sensitive pneumatic tools or in processes where oil and moisture can cause damage, a screw compressor is more suitable.
- Can Tolerate Some Air Contamination: If your air quality requirements are not as strict, such as in basic tire inflation or general - purpose pneumatic tool use where a small amount of oil or moisture in the air won't cause significant problems, a piston compressor may be acceptable, especially if you are willing to invest in additional air treatment equipment.
Space and Noise Considerations
- Limited Space and Noise - Sensitive Environment: If your shop has limited space or is located in an area where noise is a concern, a screw compressor's compact design and low - noise operation make it a better fit. Its smaller footprint and quieter operation can help create a more comfortable and efficient work environment.
- Ample Space and Noise is not a Major Issue: If you have plenty of space and noise is not a significant problem, a piston compressor may be considered, especially if its other advantages, such as lower cost and high - pressure capability, are more important to your operations.
In conclusion, both piston and screw compressors have their place in the auto repair industry. By carefully considering your shop's specific needs, budget, and operating conditions, you can make an informed decision that will ensure a reliable and efficient compressed air supply for your auto repair operations. Whether you choose the traditional simplicity of a piston compressor or the modern efficiency of a screw compressor, HPDMC offers a range of high - quality piston compressors and screw compressors to meet your requirements. Our compressors are designed with durability, performance, and user - friendliness in mind, providing you with the tools you need to keep your auto repair shop running smoothly.
