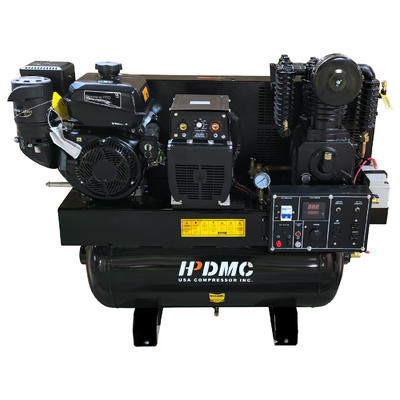

🔧 Air Compressor Specs Pump Material: Solid Cast Iron Pump Type: Two‑Stage, Oil Lubricated Oil System: Full Pressure Lubrication Max Working Pressure: 180 psi (12.4 bar) Free Air Delivery (FAD): 19 CFM @ 180 psi Tank Capacity: 30 Gallons (ASME certified) Tank Outlet: 1/2" NPT Pump Drive: Belt Drive 🔌 Generator & Welder Specs Engine Make: KOHLER / CH440 (15 HP) Starting System: 120V/240V Key Start + Recoil Max AC Output: 6000 Watts Rated AC Output: 5400 Watts AC Output (while compressor loaded @90 psi): 3600 Watts AC Output (while compressor loaded @175 psi): 3000 Watts Frequency / Voltage: 60Hz / 120V / 240V Max Amps (120V / 240V): 41.5A / 20.8A Continuous Amps (120V / 240V): 41.5A / 20.8A Welder Type: DC Arc Welder (Brushless) Welding Current Range: 40 – 180 Amps DC Welding Rod Capacity: Up to 5/32" (4.0 mm) electrode
1 Year Warranty
Easy Return
Real US Support
Lifetime Help
Help & Advice
service@sales.hpdmc-compressor.com
Live Help
WhatsApp: +18167380648
Piston Air Compressors
Reliable piston air compressors for workshops and professional applications
HPDMC piston air compressors provide reliable and versatile compressed air solutions for workshops, automotive service, manufacturing, and professional applications.
Using proven reciprocating compressor technology, piston compressors deliver dependable performance, easy maintenance, and flexible configurations for different air requirements. Available in various power ratings, tank capacities, and pressure options, HPDMC piston air compressors are designed to support both everyday tasks and demanding applications.

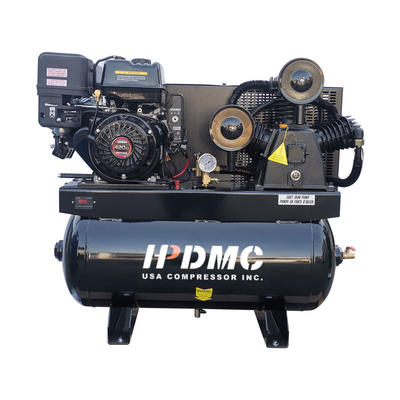

Engine Power: 13 HP – OHV 4‑stroke, recoil start Fuel Tank Capacity: 1.6 gal (6 L) – gasoline Max Working Pressure: 180 psi (12.5 bar) Free Air Delivery (FAD): 24 CFM @ 180 psi Tank Capacity: 30 Gallons (ASME certified, horizontal) Pump Type: Cast iron, two‑stage, oil‑lubricated Noise Level: 92 dB(A) @ 1m (with muffler – engine larger than 6.5HP) Mounting: Stationary – bolted feet / rubber vibration pads (no wheels) Dimensions (L×W×H): 46" × 20" × 43" Weight: 380 lbs (dry, no fuel) Outlet Size: 1/2" NPT (quick connect couplers included)

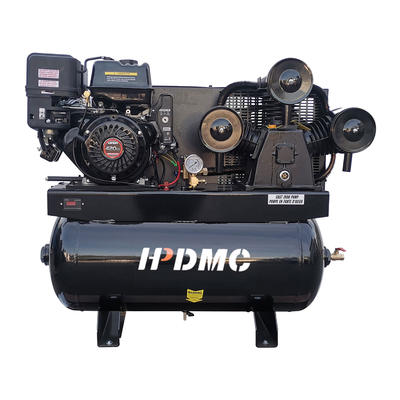

Engine Power: 13 HP – OHV 4‑stroke, recoil start Fuel Tank Capacity: 1.6 gal (6 L) – gasoline Max Working Pressure: 115 psi (8 bar) Free Air Delivery (FAD): 44 CFM @ 115 psi Tank Capacity: 30 Gallons (ASME certified, horizontal) Pump Type: Cast iron, single‑stage, oil‑lubricated Noise Level: 92 dB(A) @ 1m (with muffler – engine larger than 6.5HP) Mounting: Stationary – bolted feet / rubber vibration pads (no wheels) Dimensions (L×W×H): 46" × 20" × 43" Weight: 380 lbs (dry, no fuel) Outlet Size: 1/2" NPT (quick connect couplers included)

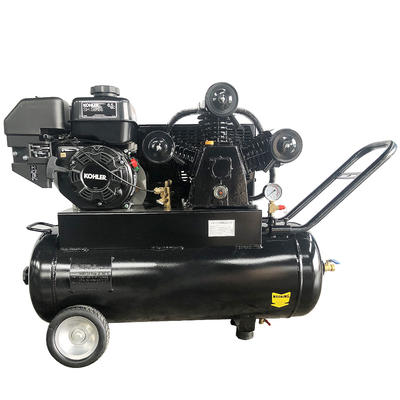

Engine Power: 6.5 HP – OHV 4‑stroke, recoil start Fuel Tank Capacity: 0.95 gal (3.6 L) – gasoline Max Working Pressure: 115 psi (8 bar) Free Air Delivery (FAD): 18 CFM @ 115 psi Tank Capacity: 20 Gallons Pump Type: Cast iron, single‑stage, oil‑lubricated Noise Level: 88 dB(A) @ 1m (with muffler) Wheels: Two heavy‑duty pneumatic wheels (10" diameter) + folding kickstand Dimensions (L×W×H): 44" × 16" × 35" Weight: 240 lbs (dry, no fuel) Outlet Size: 1/4" NPT (quick connect couplers included)

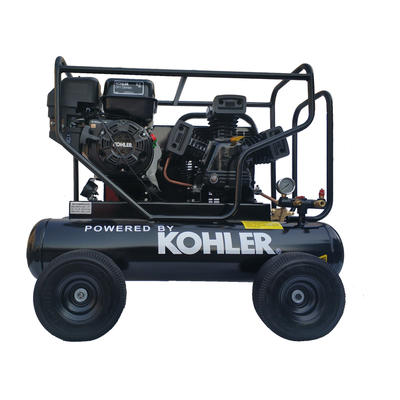

Engine Power: 6.5 HP – OHV 4‑stroke, recoil start Fuel Tank Capacity: 0.95 gal (3.6 L) – gasoline Max Working Pressure: 115 psi (8 bar) Free Air Delivery (FAD): 18 CFM @ 115 psi Tank Capacity: Dual 4.5 gal (total 9 gal) Pump Type: Cast iron, single‑stage, oil‑lubricated Noise Level: 88 dB(A) @ 1m (with muffler) Wheel: Four heavy‑duty wheels (pneumatic tire) Dimensions (L×W×H): 43" × 24" × 34" Weight: 220 lbs (dry, no fuel) Outlet Size: 1/4" NPT (quick connect couplers included)

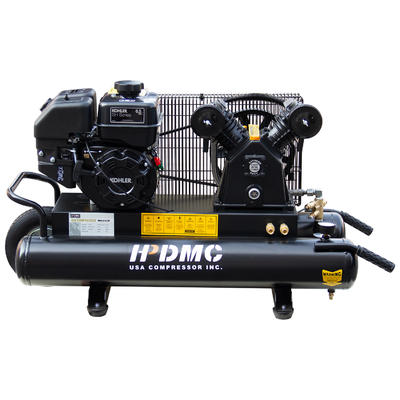

Engine Power: 6.5 HP – OHV 4‑stroke, recoil start Fuel Tank Capacity: 0.95 gal (3.6 L) – gasoline Max Working Pressure: 115 psi (8 bar) Free Air Delivery (FAD): 12 CFM @ 115 psi Tank Capacity: Dual 4.5 gal (total 9 gal) Pump Type: Cast iron, single‑stage, oil‑lubricated Noise Level: 88 dB(A) @ 1m (with muffler) Wheel: Single heavy‑duty wheel (pneumatic tire) Dimensions (L×W×H): 48" × 21" × 31" Weight: 200 lbs (dry, no fuel) Outlet Size: 1/4" NPT (quick connect couplers included)

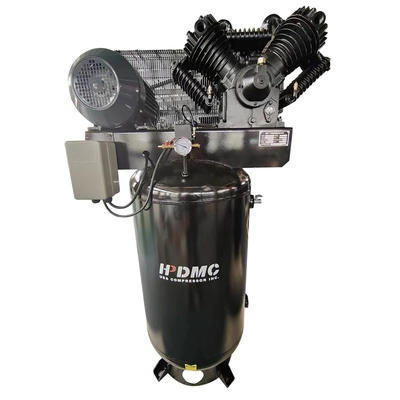

Motor Power: 10HP (7.5kW) Power Supply: 220V /60Hz /3 Phase Max Working Pressure: 175 psi (12.5 bar) Free Air Delivery (FAD): 37 CFM @ 175 psi Tank Capacity: 80 Gallons (ASME certified) Pump Type: Cast iron, two‑stage Noise Level: 78 dB(A) @ 1m (belt guard included) Dimensions (L×W×H): 45× 27× 78 inch (pump + tank) Weight: 620 lbs

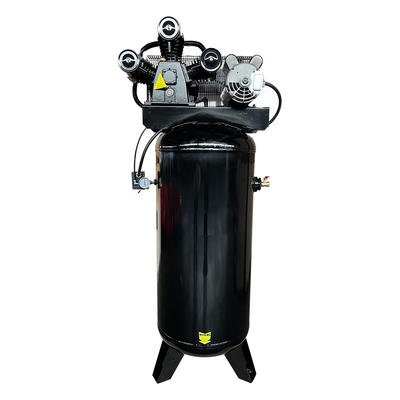

Motor Power: 5HP (3.7 kW) Power Supply: 220V /60Hz /1 Phase Max Working Pressure: 115 psi (8 bar) Free Air Delivery (FAD): 16.8 CFM @ 115 psi Tank Capacity: 60 Gallons (ASME certified) Pump Type: Cast iron, single‑stage Noise Level: 78 dB(A) @ 1m (belt guard included) Dimensions (L×W×H): 30× 25× 84 inch (pump + tank) Weight: 330 lbs Outlet Size: 1/2" NPT
🔧 Piston Air Compressors For Reliable And Versatile Compressed Air Solutions
HPDMC piston air compressors provide dependable compressed air solutions for workshops, automotive repair, manufacturing, and professional users.
Also known as reciprocating air compressors, piston compressors use a proven compression design to deliver reliable airflow, simple operation, and easy maintenance. With flexible configurations and different power options, HPDMC piston compressors are suitable for a wide range of compressed air applications.
⭐ Key Advantages Of HPDMC Piston Air Compressors
⚙️ Reliable Performance
Designed with proven piston technology to provide stable compressed air for daily operations.
🔧 Easy Maintenance
Simple mechanical design allows convenient maintenance and easy access to replacement components.
💰 Cost-Effective Solution
An excellent choice for users looking for reliable compressed air performance with practical operating costs.
📦 Flexible Configurations
Available with different power, tank capacity, and pressure options to meet various application needs.
🏭 Common Applications
HPDMC piston air compressors are widely used in:
🚗 Automotive Repair & Maintenance
For tire service, pneumatic tools, and garage equipment.
🛠 Workshops & DIY Applications
Supporting air tools, nail guns, spray equipment, and general workshop tasks.
🏭 Manufacturing & Industrial Applications
Providing compressed air for machinery and production support.
🏗 Construction & Field Applications
Suitable for portable and professional compressed air requirements.
HPDMC offers piston air compressor solutions for different working environments, helping customers choose the right combination of power, airflow, pressure, and tank capacity for their applications.
